Snom HD100 Technical Data

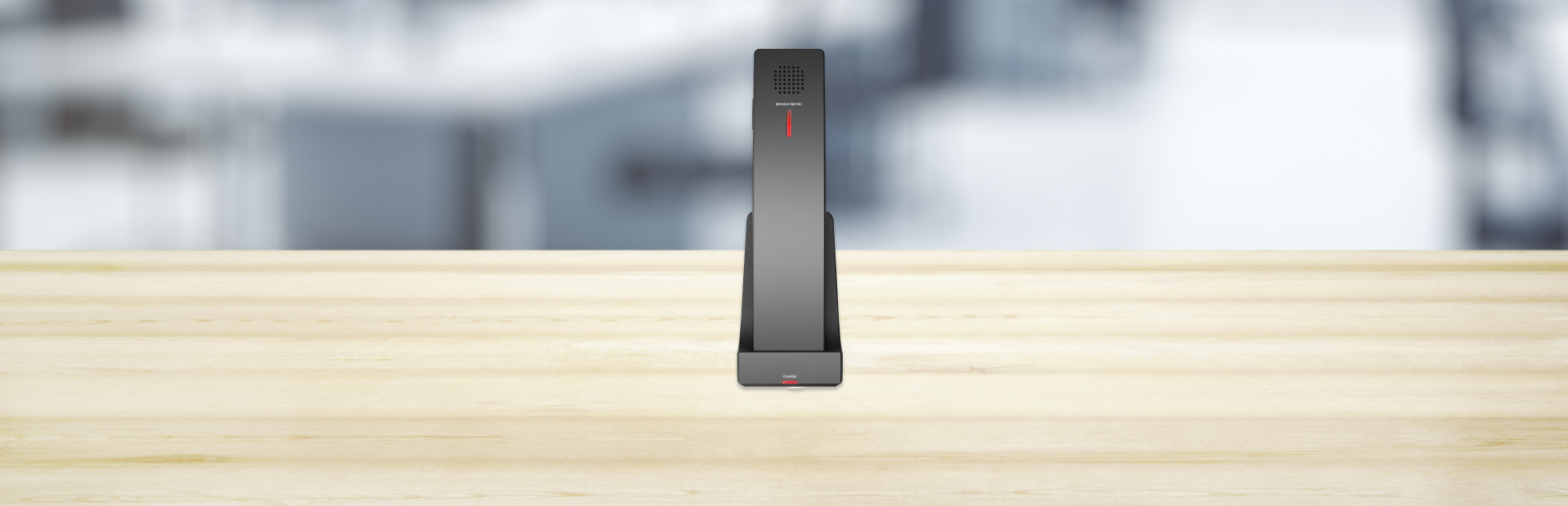

Snom Header
Snom HD100

Snom HD1
Hospitality Phone

Key features

  • Additional Cordless DECT handset
  • Color: gunmetal black
  • Antibacterial housing
  • Large LED call indicator
  • Backlit Keys
  • Hearing-aid compatible (HAC)

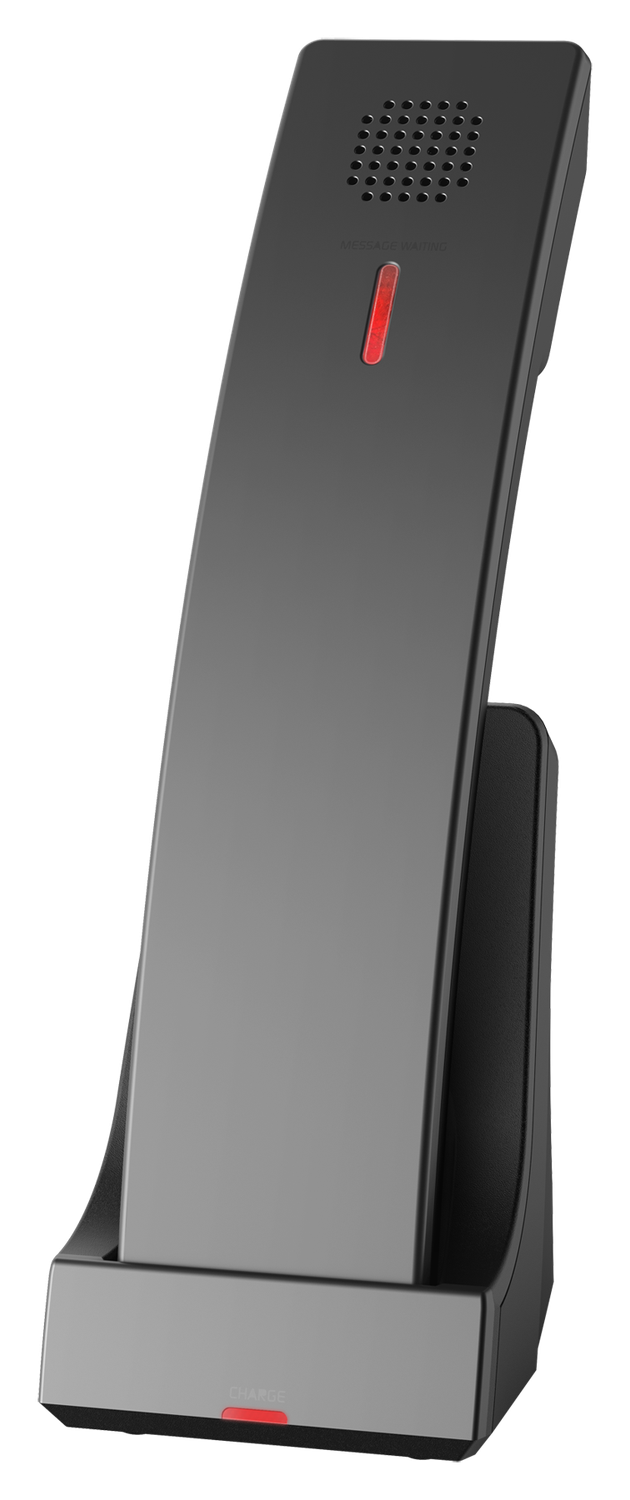

Additional DECT Cordless handset for HD101 with charging cradle

With the Snom HD1, you can expand your Snom HD101 with up to three additional cordless handsets and thus offer your guests all the benefits in a larger space, as you can make calls in up to 4 locations/rooms. In addition to their own charging cradle, all handsets have the most important features for the comfort of your guest: hands-free calling, muting and call hold are integrated. It also has an antibacterial housing to protect against germs and is easy to clean. The large visual display draws attention to calls and waiting messages. The handsets can be individually labelled on the handsets.

DSGVO compliant by design: No data storage of personal data such as dialed numbers! Remote setup and maintenance exclusively via server in Germany!

*Faceplates not included

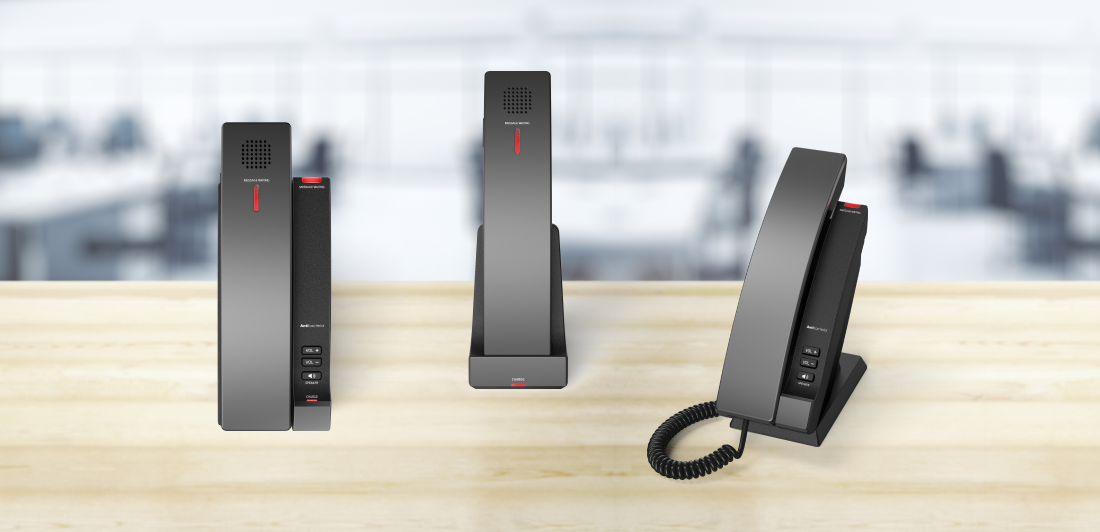

Snom HD100 Device View

Technical data

Basics
Product information
  • Cordless DECT handset
  • Charging cradle
  • PN 00007002
  • Colour: gunmetal black
  • Anti-bacterial housing
  • Sturdy, solid construction
  • Ultra small footprint and compact design
Placement
  • Indoor
  • Desktop
  • Nightstand
Dimensions and weight
Dimensions (H × W × D, approx.)
  • Handset: 213 mm × 49 mm × 42 mm
  • Charging cradle: 71 mm × 96 mm × 108 mm
  • Handset (on the charging cradle, desk mounted): 71 mm × 115 mm × 214 mm
Weight (approx.)
  • Handset: 178 g
  • Charging cradle: 285 g
  • Handset (on the charging cradle, desk mounted): 469 g
Indicators and keys
6 LED indicators
  • Charging cradle
  • Charging indication: 1 red LED
  • Handset
  • Flash/Talk key indication: 1 red LED
  • Mute status indication: 1 red LED
  • Speakerphone mode: 1 red LED
  • Hold status indication: 1 red LED
  • Low battery indication / Charging indication: 1 red LED
Handset: 23 hard keys in total
  • 12 keys (standard ITU telephone keypad), backlit
  • 4 dedicated audio keys
  • SPEAKER ⇒ Speakerphone mode (with red LED)
  • MUTE ⇒ Mute (with red LED)
  • +VOLUME- ⇒ Volume + / - (rocker)
  • 2 programmable function keys
  • Speed dialling
  • 5 dedicated function keys
  • TALK/FLASH ⇒ Offhook (with red LED)
  • EMERGENCY [➕] ⇒ Emergency
  • OFF ⇒ Onhook / Cancel
  • HOLD ⇒ Hold (with red LED)
  • MESSAGES ⇒ Message
Audio devices and features

Microphone

Handset earpiece
  • Hearing aid compatible (HAC)
Casing speaker
  • Speakerphone mode (via dedicated function key)

Built-in assignable ringtones

Interfaces and connections
Power options
  • Handset: Battery (CORUN) AAA-NiMH 2.4 V, 550 mAh, preinstalled, removable, rechargeable, up to 7 h talk time, up to 5 days standby time, up to 16 h charging time
  • Charging cradle: Power adapter (VT-PLII), 100 - 240 V AC, 50/60 Hz, 150 mA, 6 V DC, 450 mA, 2.7 W
Wired interfaces
  • Charging cradle: coaxial power connector (socket)
Wireless interfaces
  • DECT
DECT technology and features

Standard: DECT

  • Authentication/encryption of base and handset
  • Wideband audio
Frequency band
  • EU & UK & AU: 1,881.792 - 1,897.344 MHz

Easy registration to compatible base stations (HD101)

Call Features
  • Speed dialling via function keys
  • Mute microphone (via dedicated function key)
  • Hold (via dedicated function key)
  • Multicast paging
  • Quick call answer (by simple pick-up from the base/charger)
Environmental conditions

Operating ambient temperature: 5 °C - 45 °C
Humidity (non-condensing): 5 % - 95 %

Package contents
Hardware
  • DECT handset HD1
  • Battery: preinstalled
  • Charging cradle
  • Power adapter
Documentation
  • Quick Installation Guide (QIG)
Snom accessories and compatible devices

Guest room phone: HD101 (PN 00007001)

Power adapter: Charging cradle HD1 PSU
  • EU: PN 00004683
  • UK: PN 00004684
  • AU: PN 00004685

Battery HD1 (PN 00004509)
