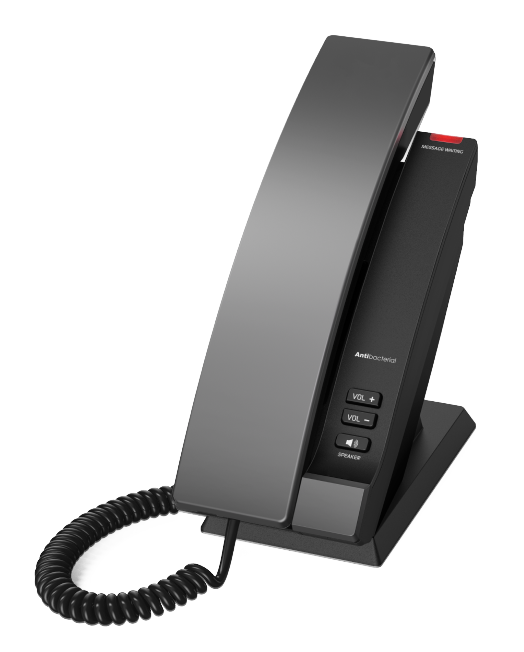

Snom HD100
Hospitality Phone
Key features
- Antibacterial housing
- Large LED call indicator
- Individual labelling via inserts

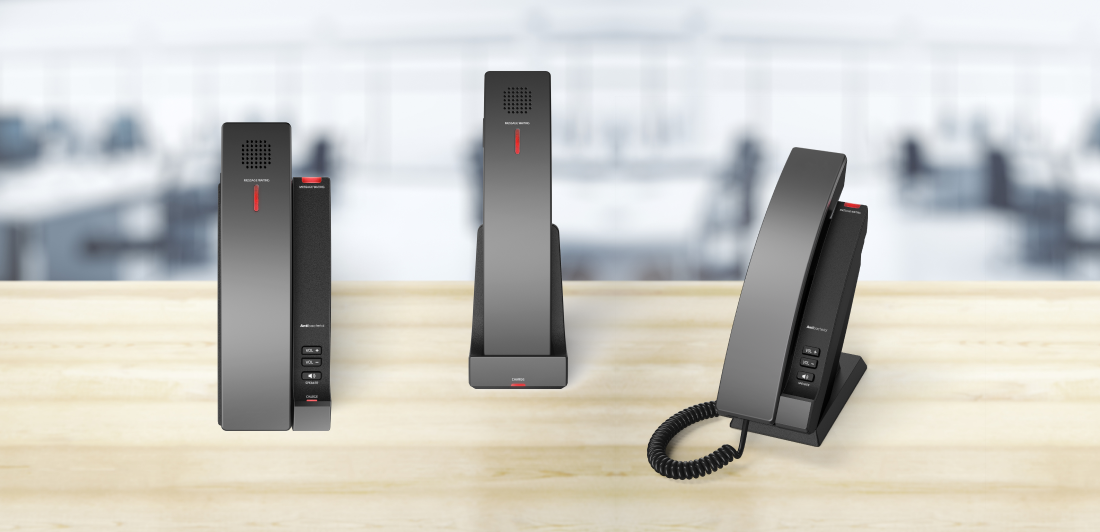

The HD 100 has a modern, sleek design that blends in with its surroundings.
The Snom HD100 is user-friendly and includes key features such as handsfree, hold and mute. It is also equipped with easy-to-clean antibacterial housing and thanks to the power supply via PoE, no additional power connection is required in the room. A large optical display alerts the guest to calls or waiting messages. Individualised labelling is provided as an insert on the station.
DSGVO compliant by design: No data storage of personal data such as dialed numbers! Remote setup and maintenance exclusively via server in Germany!
*Faceplates not included
Technical features
Antibacterial housing
The device has antibacterial housing, which is certified according to the Japanese JIS-Z2801 and thus does not provide a breeding ground for bacteria.
Power over Ethernet (PoE)
This device can receive its power from a connected network cable, provided that the network switch used supports this and has enough power to supply all connected devices.
Technical data
Basics and equipment
Product information
- Guest room phone|Corded handset|PN 00007000
- Colour: gunmetal black
- Anti-bacterial housing
Equipment
- Sturdy, solid construction
- Fully customisable faceplate for hotel branding and dialing instructions1
Placement:indoor,desktop,nightstand,wall mounting
Dimensions and weight
Dimensions (H × W × D, approx.)
- Corded handset (on the base cradle,desk mounted):79 mm × 176 mm × 163 mm
- Corded handset (on the base cradle, wall mounted): 79 mm × 78 mm × 211 mm
Weight (approx.)
- Corded handset (on the base cradle): 665 g
Indicators and keys
2 LED indicators
- Corded handset
- Mute status indication: 1 red LED
- Telephone base
- Call status indication| Message waiting indication (MWI): 1 red LED
26 hard keys in total
- Corded handset
- 12 keys (standard ITU telephone keypad)
- 3 dedicated audio keys
- MUTE → Mute (with red LED)
- VOL+ → Volume +
- VOL- → Volume -
- 2 dedicated function keys
- EMERGENCY → Emergency
- MESSAGES → Message
- 2 programmable function keys: Speed dialling
- Telephone base
- 3 dedicated audio keys
- VOL+ → Volume +
- VOL- → Volume -
- SPEAKER → Speakerphone (with red LED)
- 4 programmable function keys: Speed dialling
Audio devices and features
Telephone base
- Casing microphone
- Casing speaker
Corded handset
- Microphone
- Handset earpiece
- Hearing aid compatible (HAC)
Built-in assignable ringtones
Interfaces and connections
Power options
- Power over Ethernet (PoE)
- IEEE 802.3af, class 2
- Power adapter1
- 100 - 240 V AC / 50/60 Hz / 500 mA | 5 V DC / 2 A
Wired interfaces
- Telephone base
- Network connectivity: RJ45-8P8C socket → Gigabit Ethernet (GbE)
- Power adapter:1 coaxial power connector (socket)
- Handset cord: custom socket
- Corded handset
- Handset cord: custom socket
Administration interfaces and setup
Configuration and setup via voice menu Configuration and setup via menu-driven web user interface (WUI) Advanced SIP configuration tool for easy mass deployment and phone monitoring Secure Redirection And Provisioning Service (SRAPS) support
Networking technologies and protocols
VLAN support
SIP (RFC 3261)
Interoperability
Interoperable with all major IP-PBX platforms
Call features
1 SIP identity / account
Speed dialling via function keys
Speakerphone mode
(via dedicated function key)
Mute microphone
(via dedicated function key)
Multicast paging
Environmental conditions
Operating ambient temperature:
5 °C - +45 °C
Humidity (non-condensing):
5 % - 95 %
Package contents
Hardware
- Telephone base
- Corded handset
- Footstand
- Wall mount kit
- 2 Ethernet cables: Cable length (approx.) 140 mm| 2 m
Documentation
- Quick Installation Guide
Snom accessories and compatible devices
Power adapter:1 Telephone base PSU
- EU: PN 00004687
- UK: PN 00004688
- AU: PN 00004689
