Snom HD100

Snom HD350W
Hotel Telephone

Key features

  • Built-in Wi-Fi for wireless network connectivity
  • Large LED call indicator
  • Antibacterial housing

Modern WiFi phone that fits well into any environment.

The Snom HD350W stands out due to its particularly clear design. Important function keys such as mute, hands-free and hold are located on the control panel. The antibacterial housing to protect against germs is a real plus in everyday life. A large visual display alerts the guest to calls or waiting messages. Individualised inscriptions are made as inserts on the control panel.

DSGVO compliant by design: No data storage of personal data such as dialed numbers! Remote setup and maintenance exclusively via server in Germany!

*Faceplates not included

Antibacterial housing

The coating of the housing offers effective protection against germs

DSGVO by Design

No data storage of guest data!

Customisation

As with almost all appliances in the Hospitality series, you can optionally order customised inserts for the base tray.

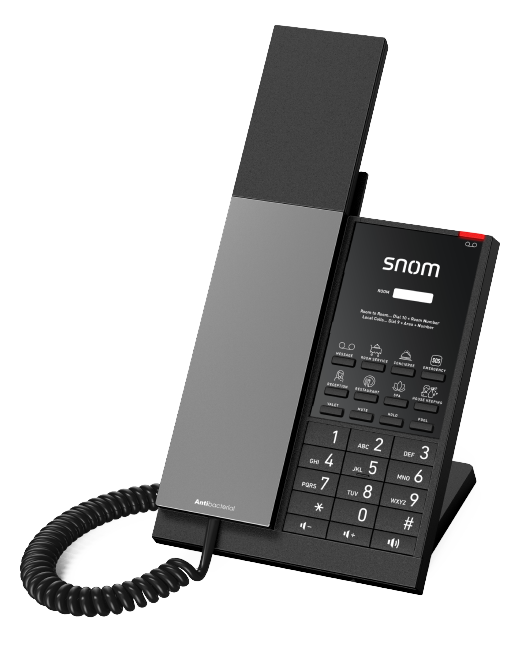

Snom HD100 Device View

Technical features

Antibacterial icon

Antibacterial housing

The device has antibacterial housing, which is certified according to the Japanese JIS-Z2801 and thus does not provide a breeding ground for bacteria.

PoE icon

Power over Ethernet (PoE)

This device can receive its power from a connected network cable, provided that the network switch used supports this and has enough power to supply all connected devices.

PoE icon

WLAN

The device has integrated WLAN.

Technical data

Basics and equipment
Product information
  • IP Guest room phone HD350W + Corded handset
  • Colour: gunmetal black
  • PN 00007008
Housing
  • Anti-bacterial housing
  • Sturdy, solid construction
Equipment
  • Fully customisable faceplate for hotel branding and dialing instructions
Placement
  • Indoor
  • Desktop
  • Nightstand
  • Wall mounting
Dimensions and weight
Dimensions (H × W × D, approx.)
  • Corded handset on the base cradle, desk mounted: 109 mm × 146 mm × 182 mm
  • Corded handset on the base cradle, wall mounted: 109 mm × 56 mm × 216 mm
Weight (approx.)
  • Corded handset on the base cradle: 778 g
Indicators and keys
LED indicators
  • Telephone base: 3 LED indicators
  • Call status indication
  • Message waiting indication (MWI): 1 red LED
  • Mute status indication: 1 red LED
  • Speakerphone mode: 1 red LED
Keypad
  • 27 hard keys in total
  • 12 keys (standard ITU telephone keypad)
Dedicated audio keys
  • Mute (with red LED)
  • Speakerphone (with red LED)
  • Volume +
  • Volume −
Function keys
Programmable function keys
  • 10 programmable function keys
  • Speed dialling
Dedicated function keys
  • 1 dedicated function key: Hold
Audio devices and features
Telephone base
  • Casing microphone
  • Casing speaker
Corded handset
  • Microphone
  • Handset earpiece
Audio features
  • Hearing aid compatible (HAC)
  • Built-in assignable ringtones
  • Hands-free / speakerphone mode
Interfaces and connections
Power options
  • Power over Ethernet (PoE)
  • IEEE 802.3at
  • PoE Class 2
Power adapter
  • 100 - 240 V AC
  • 50 - 60 Hz
  • 500 mA
  • 5 V DC
  • 2 A
Wired interfaces
  • 2 × RJ45-8P8C sockets
  • NET & PC
  • Gigabit Ethernet (GbE)
  • Coaxial power connector
  • Handset cord: custom socket
Wireless interfaces
  • Wireless LAN (Wi-Fi)
Networking technologies and protocols
Network protocols
  • SIP (RFC 3261)
  • VLAN support
Wireless LAN - 2.4 GHz
  • Frequency: 2,412 - 2,472 MHz
  • IEEE 802.11b (Wi-Fi 2): up to 11 Mbps
  • IEEE 802.11g (Wi-Fi 3): up to 54 Mbps
  • IEEE 802.11n (Wi-Fi 4): up to 150 Mbps
Wireless LAN - 5 GHz
  • Frequency: 5,180 - 5,320 MHz
  • Frequency: 5,500 - 5,700 MHz
  • IEEE 802.11a (Wi-Fi 1): up to 54 Mbps
  • IEEE 802.11n (Wi-Fi 4): up to 150 Mbps
  • IEEE 802.11ac (Wi-Fi 5): up to 433 Mbps
WLAN security
Enterprise security
  • WPA3/WPA2 Enterprise
  • EAP-TLS
  • PEAP
  • WPA2 Enterprise
Personal security
  • WPA3/WPA2 Personal
  • WPA2/WPA Personal
Output power
  • EU < 20 dBm EIRP
Administration interfaces and setup
Configuration and setup
  • Configuration and setup via voice menu
  • Configuration and setup via menu-driven web user interface (WUI)
Management
  • Advanced SIP configuration tool for easy mass deployment and phone monitoring
  • Secure Redirection And Provisioning Service (SRAPS) support
Call features
SIP
  • 1 SIP identity / account
  • Mute microphone via dedicated function key
  • Speakerphone mode via dedicated function key
Calling features
  • Hold via dedicated function key
  • Speed dialling via function keys
  • Multicast paging
Interoperability
Compatibility
  • Interoperable with all major IP-PBX platforms
Environmental conditions
Operating ambient temperature
  • 5 °C - +45 °C
Humidity
  • 5 % - 95 %
  • Non-condensing
Package contents
Hardware
  • Telephone base
  • Corded handset
  • Handset cable: approximately 0.3 m
  • Power adapter
  • Footstand
  • Wall mount kit
Ethernet cables
  • 2 Ethernet cables
  • Cable length: approximately 140 mm
  • Cable length: approximately 2 m
Documentation
  • Quick Installation Guide
Snom accessories and compatible devices
Power adapter
  • Telephone base PSU
  • EU: PN 00004687
  • UK: PN 00004688
  • AU: PN 00004689
Compatible accessories
  • HD3xx design handset cover
  • Available separately
  • Compatible with HD3xx models
