Snom HD100 Technical Data

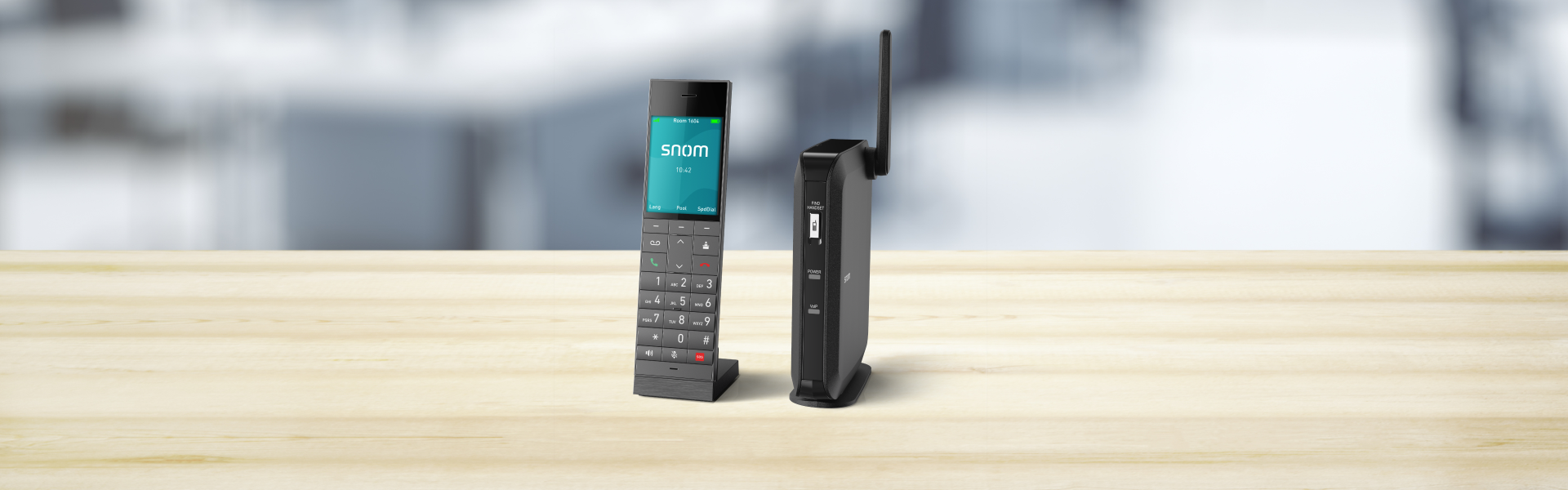

Snom Header

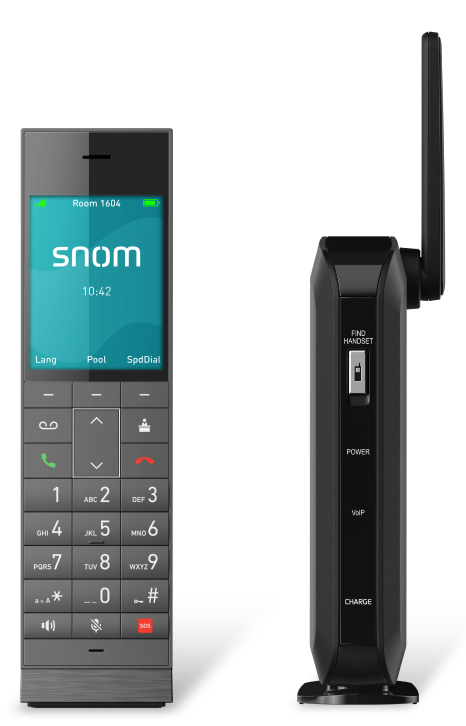

Snom HD100

Snom HM201
DECT Hospitality Telephone

Key features

  • Cordless DECT handset
  • Antibacterial housing
  • Large colour display
  • Up to 4 handsets

One of the most stylish hospitality phones on the market: very modern, elegant design.

The DECT solution Snom HM201 has a base station for up to 4 handsets per unit. The large, clear colour display makes it easy for guests to find their way around. The DECT over IP technology offers the greatest possible freedom of movement, and the antibacterial surface provides protection against germs. Individualisation takes place via the display.

DSGVO compliant by design: No data storage of personal data such as dialed numbers! Remote setup and maintenance exclusively via server in Germany!

Antibacterial housing

The housing coating offers effective protection against bacteria

GDPR by design

No data storage of guest data!

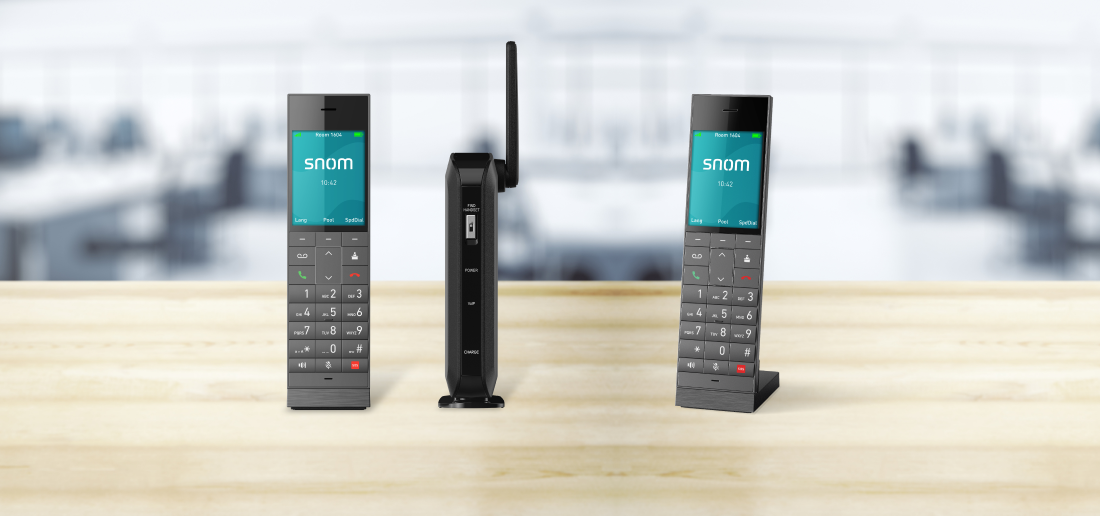

Snom HD100 Device View

Technical features

Antibacterial icon

Antibacterial housing

The device has antibacterial housing, which is certified according to the Japanese JIS-Z2801 and thus does not provide a breeding ground for bacteria.

PoE icon

Backlit keypad

This device has backlit keys, which is of course very useful especially in low-light conditions.

PoE icon

DECT

This device communicates using the radio standard for telecommunications called DECT (Digital Enhanced Cordless Telecommunications).

PoE icon

Power over Ethernet (PoE)

This device can receive its power from a connected network cable, provided that the network switch used supports this and has enough power to supply all connected devices.

PoE icon

Single cell system

This DECT base can only be operated alone and cannot be connected to a multi-cell.

Technical data

Basics
Product information
  • Guest room phone
  • Bundle HM201: EU & UK, PN 00007006
  • DECT single-cell base station
  • DECT handset HM2 + charging cradle
  • Colour
  • Base station: black
  • Handset: gunmetal black

Placement: indoor, desktop

  • Base station: wall mounting
Dimensions and weight
Dimensions (H × W × D, approx.)
  • Base station: 220 mm × 110 mm × 40 mm
  • Handset: 180 mm × 50 mm × 15 mm
  • Charging cradle: 32 mm × 50 mm × 63 mm
  • Handset (on the charging cradle): 190 mm × 50 mm × 63 mm
Weight (approx.)
  • Base station: 227 g
  • Handset: 147 g
  • Charging cradle: 215 g
  • Handset (on the charging cradle): 357 g
Display and Indicators

Handset: Display

  • TFT liquid crystal display (LCD), true colour, extra slim, backlit
  • Size (diagonal): 2.8″ (71 mm)

Base station: 2 LED indicators

  • Power status indication: 1 green LED
  • VoIP status indication: 1 green LED
Keypad and function keys

Base station: 2 hard keys in total

  • Handset localisation
  • Reset

Handset: 24 hard keys in total

  • 12 keys (standard ITU telephone keypad)
  • 3 context-sensitive function keys
  • 4 dedicated audio keys
  • Mute
  • Speakerphone
  • Volume +
  • Volume -
  • 5 dedicated function keys
  • Onhook
  • Offhook
  • Message
  • Front desk
  • Emergency
Interfaces and connections
Power options
  • Base station: Power over Ethernet (PoE), IEEE 802.3af, class 2 or Power adapter1 100 - 240 V AC / 50 - 60 Hz | 5 V DC / 800 mA
  • Handset: Battery lithium-ion 3.7 V, 1,000 mAh, preinstalled, removable, rechargeable, up to 7 h talk time, up to 120 h standby time, up to 11 h charging time
  • Charging cradle: Power adapter1 100 - 240 V (AC) , 50 - 60 Hz, 150 mA | 6 V , 450 mA, 2.7 W
Wired interfaces
  • Base station
  • Power adapter: coaxial power connector (socket)
  • Ethernet 10/100/1000 Mbit/s: 2 × RJ45-8P8C sockets
  • Charging cradle
  • Power adapter: RJ-11 socket
Wireless interfaces
  • DECT
Audio devices and features
Base station
  • Audio codecs: G.711 (A-law, μ-law), G.722, G.726, G.729AB, iLBC
Handset
  • Microphone: Hearing aid compatible (HAC)
  • Handset earpiece: Speakerphone mode
User interfaces and setup
Base station
  • Advanced SIP configuration tool for easy mass deployment and phone monitoring
  • Handset localisation
Handset
  • Comfortable and intuitive menu structure
  • Real time clock, room number, and guest name programming available
  • Low battery indication
  • Remote maintenance
Call Features

Quick call answer (by simple pick-up from the base/charger)
Speed dialling: up to 10 (scrolling list on the display)
Mute microphone (via dedicated function key)

Networking technologies and protocols

VLAN (IEEE 802.1q)
SIP (RFC 3261)

DECT technology and features
Standard: DECT
  • Authentication/encryption of base and handset
  • Wideband audio
Frequency band
  • Australia & Europe: 1,880 - 1,900 MHz

Handsets HM2: up to 4

Environmental conditions

Operating ambient temperature: 0 °C - +40 °C
Humidity (non-condensing): 5 % - 95 %

Package contents
Hardware
  • Base station
  • Ethernet cable
  • DECT handset HM2
  • Battery: preinstalled
  • Charging cradle
  • Power adapter
Documentation
  • Quick Installation Guide (QIG)
Snom accessories and compatible devices

Power adapter: Charging cradle PSU

  • EU: PN 00004697
  • UK: PN 00004698
  • AU: PN 00004699

Battery HM2 (PN 00004627)
